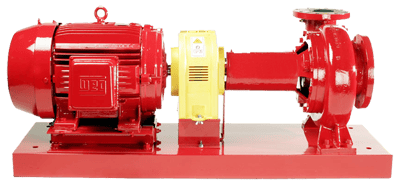

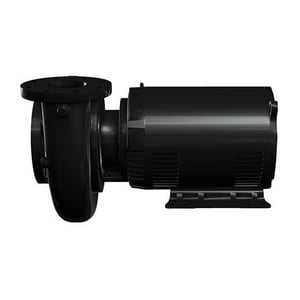

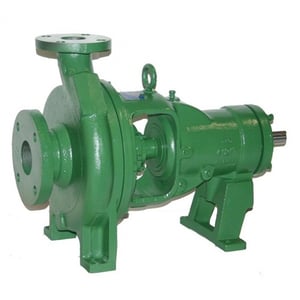

Close-coupled end suction pumps mount directly to the motor for a compact, space-saving design. Frame-mounted pumps use a separate bearing frame and coupling, offering greater flexibility for maintenance, motor selection, and demanding applications.
Proper sizing requires the desired flow rate, total dynamic head, fluid properties, and operating conditions. Comparing these requirements to the pump performance curve helps ensure efficient operation within the recommended operating range.
Most standard end suction centrifugal pumps must be filled with liquid before startup. Systems with flooded suction may keep the pump naturally primed, while suction-lift installations typically require manual priming or a separate priming system.

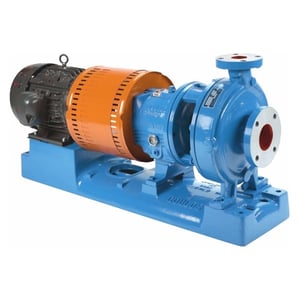

ANSI process pumps are well suited for chemical processing and demanding industrial applications requiring standardized dimensions, material compatibility, and ease of maintenance. These pumps are commonly designed to meet ANSI/ASME B73.1 standards.

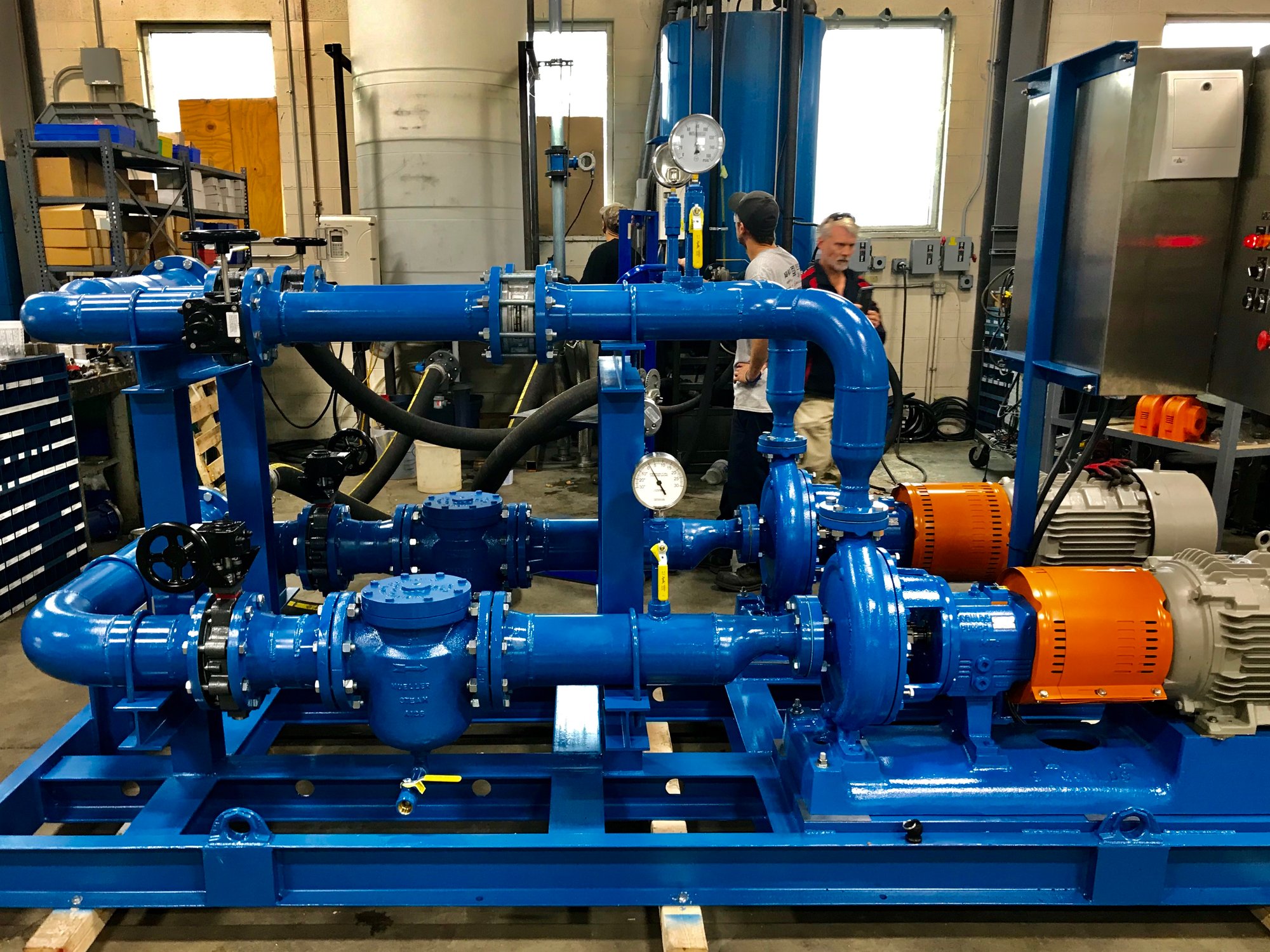

Close-coupled and frame-mounted end suction pumps are commonly used for cooling water circulation and transfer. Selection depends on flow rate, head requirements, water quality, operating temperature, and system conditions.
End suction centrifugal pumps are commonly used for municipal water transfer, distribution, and booster applications. Frame-mounted or close-coupled configurations may be appropriate depending on flow, pressure, installation space, and maintenance requirements.

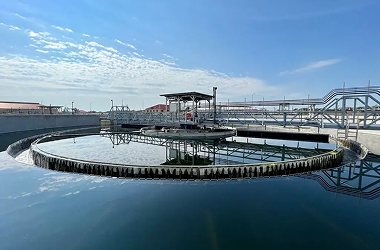

End suction pumps can handle certain wastewater applications, particularly clarified effluent and liquids with limited solids. Wastewater containing larger solids or debris may require specialized solids-handling or non-clog pump designs.

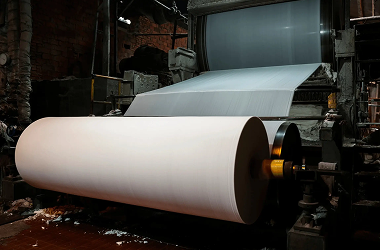

Pump selection depends on fluid consistency, solids content, temperature, and flow requirements. End suction pumps are commonly used for process water, chemical transfer, and certain low-consistency pulp applications when properly designed for the fluid.

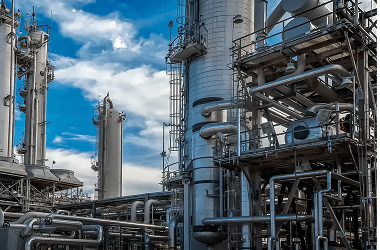

Chemical transfer pumps must be selected based on fluid compatibility, concentration, temperature, flow rate, and pressure requirements. ANSI process end suction pumps offer corrosion-resistant material options and sealing configurations for demanding chemical applications.
Crane Engineering supplies close-coupled, frame-mounted, and ANSI process end suction pumps for industrial applications, including water transfer, cooling systems, chemical processing, and plant utilities. Our pump specialists can help select the appropriate configuration for your process requirements.
