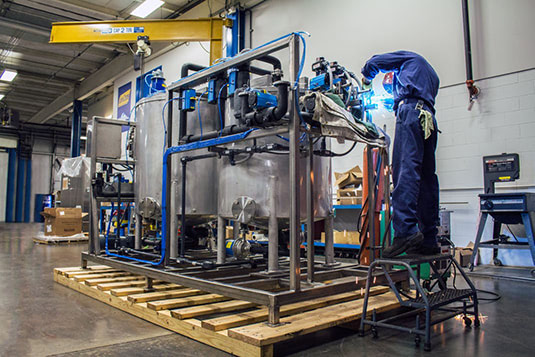

Pump Skid Systems

Improving efficiency with custom skid solutions.

wave
waves-2

quotes

"When I look at Crane’s system side-by-side with their competition, there is no comparison. Crane’s systems are better designed for durability, maintenance, and performance."

GLOBAL CHEMICAL MANUFACTURER

A great pump skid system starts with a great process

From design to install, to ongoing support, Crane’s OptiFlow™ team has a time-tested formula for success.

Download Our OptiFlow Brochure

SkidSystem
System-Design

System Design

Systems are designed using Autodesk® Inventor® to create a virtual model, allowing equipment interfaces and fits to be checked prior to assembly. Special attention on component location ensures proper functionality, maximum serviceability, and reduced operator risk.

optiflow-sourcing

Sourcing

Leveraging over 80 years of distribution experience and component know-how, we carefully size and select the right mix of equipment for optimal performance. After a bill of materials is developed, we work with our manufacturer partners to source at below market prices.

optiflow-fabrication

Fabrication

Experienced technicians and engineers collaborate to recommend potential improvements to increase serviceability or function. This yields superior workmanship and ensures all systems are built to the correct specifications. All control panels are built in our UL listed panel shop.

Controls

Controls

Your plant specifications determine the components our team selects, or we choose from leading technology providers like Allen Bradley, ABB, and Phoenix Contact. PLCs and Operator Interfaces are programmed with a focus on stable process control, ease of use, and reliability.

optiflow-inspection

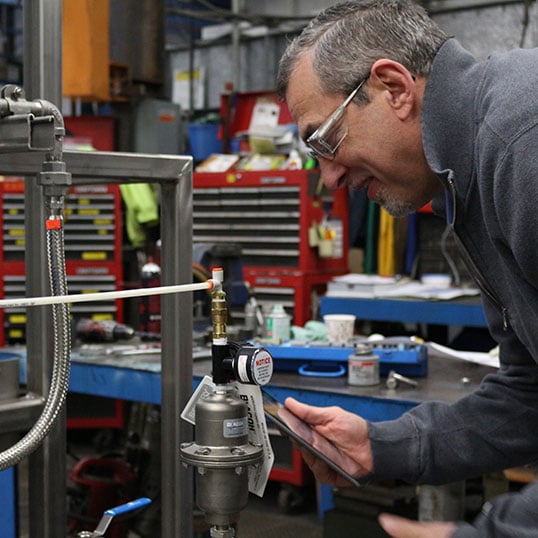

Quality Inspection

Before systems are shipped out to you, our engineers thoroughly inspect and test them. System trials are completed in-house in our test cell with the subject chemicals or water to ensure proper functionality.

optiflow-checkout

Check Out

Our clients visit us for final tests and inspections prior to shipping.

optiflow-documentation

Documentation

A comprehensive manual is created that includes a bill of materials, 3D mechanical and electrical drawings, P&IDs, equipment datasheets, and start-up/operating instructions. All are in an electronic format and utilize screenshots and photos to enhance key topics.

optiflow-install

Install and Start-Up

Proper installation and start-up are vital to the long-term operation of the system. Our experienced mechanical and/or controls personnel help install and start up your Optiflow skid systems upon request.

optiflow-lifecycle-services

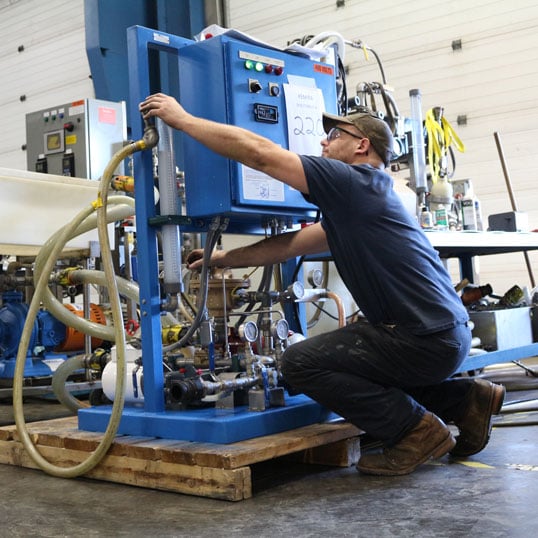

Asset Management

We fully back and support our systems by providing lifecycle services such as troubleshooting, maintenance, reconditioning, and asset tracking.

CraneLines

quotes

"I’ve worked with Crane Engineering’s OptiFlow team for over 5 years. They’re very responsive and turn requests around quickly. Their team understands my industry and the best equipment to achieve our goals. Having a partner with the technical know-how and industry knowledge is huge to us."

WET WIPE MANUFACTURER

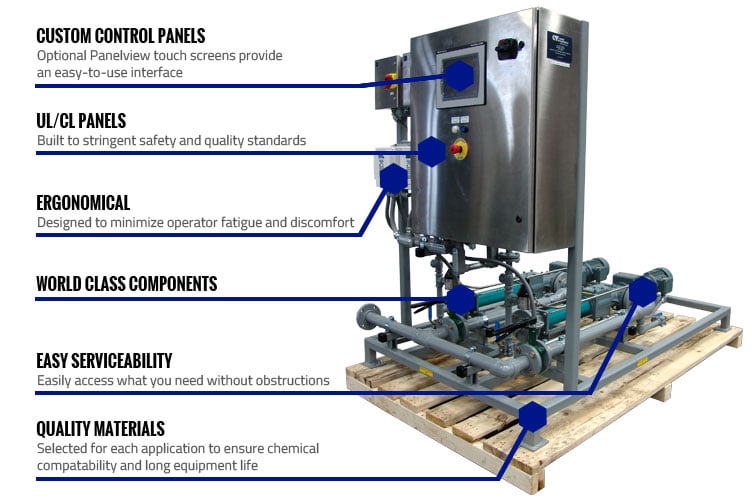

OptiFlow™ systems are designed for easier operation, serviceability, and safety

With pump skid systems, there’s a lot on the line. We’re there for our systems the day they’re delivered, and we’ll continue to support them for years to come.
