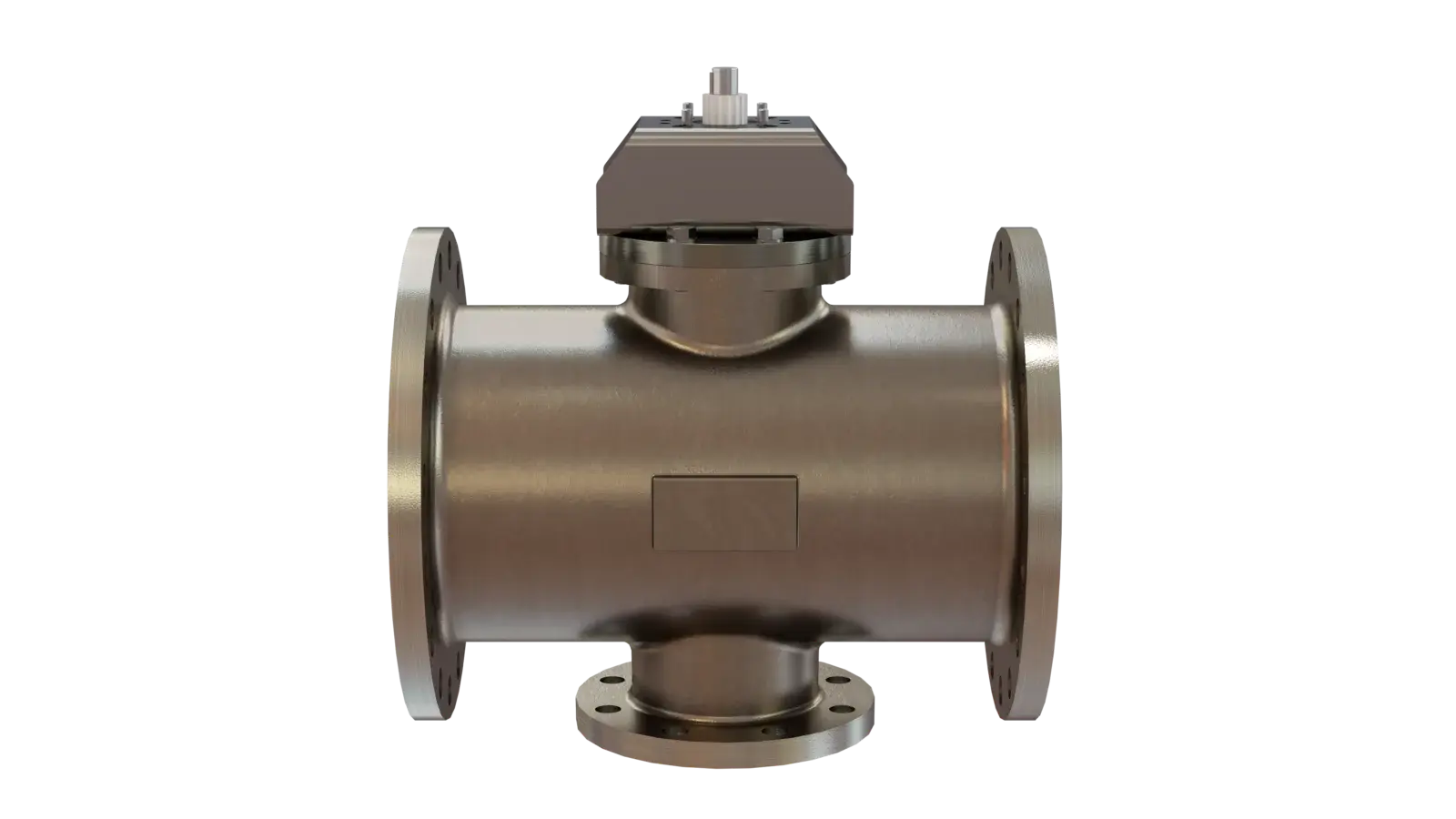

Solaris® Hydroheater

PRODUCT DESCRIPTION

The Solaris® features a Cross-Flow Diffuser that injects steam across the entire cross-section of flow to ensure thorough mixing and a uniform temperature profile. It utilizes low shear flow, making it ideal for slurries with high solid contents and process fluids where chunk size must be maintained.

FEATURES AND BENEFITS

• Straight-Through design delivers uniform heating and mixing without plugging
• Patented Cross-Flow Diffuser uniformly distributes the heat into the liquid
• Rotating Stem Plug meters and regulates steam flow
• Instantaneous condensation of steam eliminates hammer and vibration
• Multiple heater sizes to meet your process needs
• Precise temperature control +/-1°F [.50°C]
• Straight through design
• Low pressure drop compared to other steam injection technology
• Ensures thorough mixing and uniform temperature profile
• Low shear, maintains particle size
• Directly integrates into existing plant utilities
• Available as a standalone heater or skidded system
• Multiple heater sizes to meet your process needs
• Stainless steel cast construction designed to withstand the most severe applications; other custom materials available

APPLICATIONS

• Sludge Heating
• Pulp Stock Heating
• Back Set Heating
• Bleaching
• Viscous/High Solid/Fibrous Slurries
• Aseptic Applications (Tomato Paste)
• Corn Oil
• General Water Heating

PERFORMANCE

• Pressure & Temperature
  • Max Pressure – 300 PSIG / 20.7 Barg
  • Max Temperature – 450°F / 232°C
• Flow Turndown
  • Up to 10:1 Liquid Turndown
• Connection Types
  • ANSI Class 150 & Class 300
  • DIN PN16, PN25, PN40

INDUSTRIES

• Food
• Wastewater
• Chemical
• Pharmaceuticals (Personal Care & Bio Tech
• Energy & Utilities (Oil & Gas)
• Paper & Pulp
• Renewable Fuel (Ethanol)
• Mining (Processing Facilities)
• Metal
• Automotive
