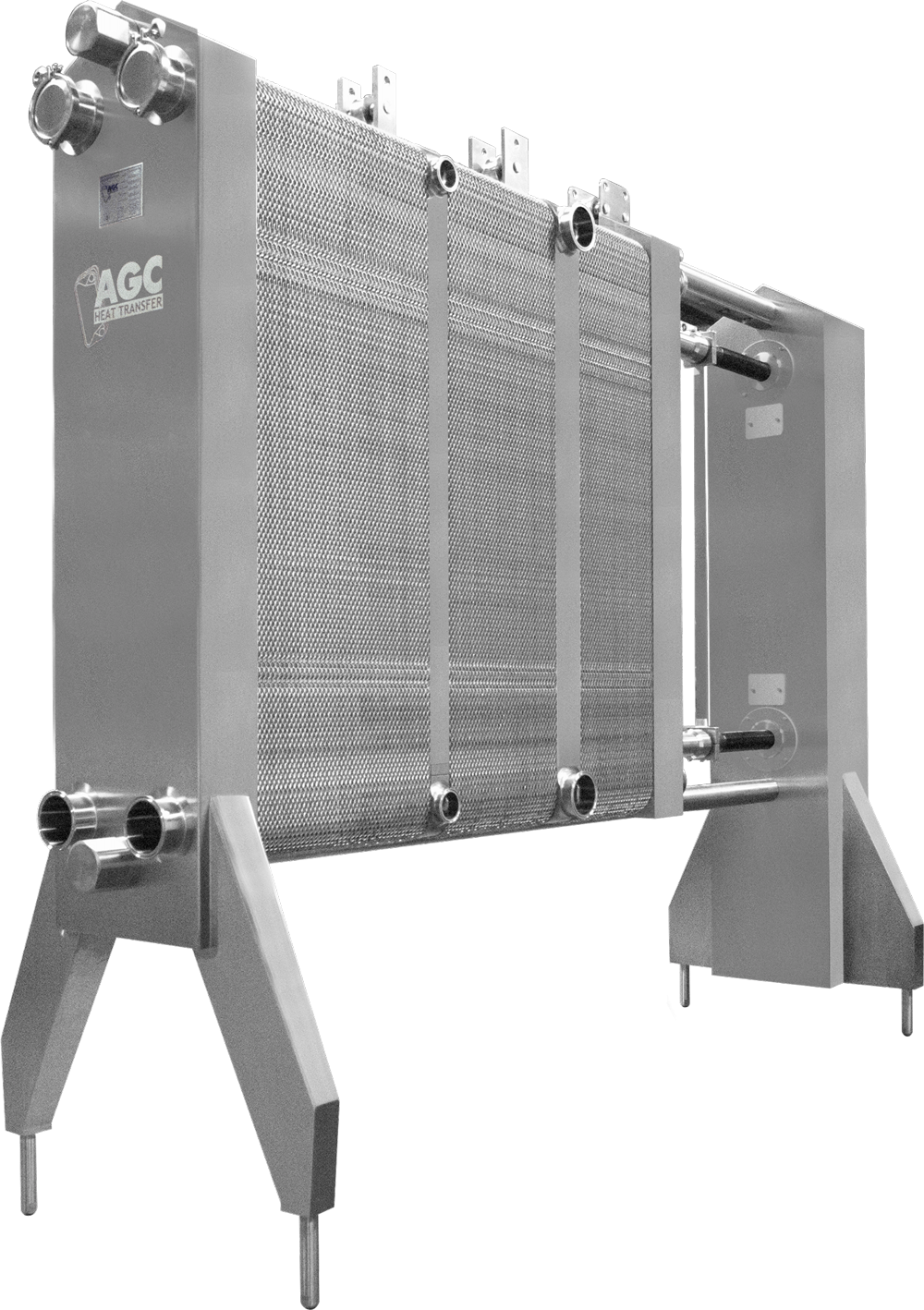

AGC Model AR51-H Hydraulic Frame

PRODUCT DESCRIPTION

AGC Heat Transfer's Model AR51-H hydraulic frames are designed to enhance the efficiency and safety of heat exchanger operations in processing plants. These frames feature automatic closure, allowing for quick and easy maintenance and repair of heat exchangers. With the ability to open and close the frame using a single lever, downtime is minimized, saving valuable production time and costs.

The hydraulic closure system ensures even plate compression, extending the heat exchanger's life. The frames are built to withstand high-pressure applications up to 200 PSIG and feature a sanitary bead-blasted finish. AGC offers two models, the AR51-D and AR51-H, with various leg height options and terminal dividers to suit specific application requirements.

FEATURES AND BENEFITS

• Automatic hydraulic closure for quick and easy maintenance
• Single lever operation for simple opening and closing
• Even plate compression for extended heat exchanger life
• High-pressure design up to 200 PSIG
• Sanitary bead-blasted finish for hygienic applications
• Multiple leg height options and terminal dividers are available
• Heavy-duty construction with stainless steel cladding and powder-coated base
• Interchangeable parts with existing R51 frames (AR51-H model)
• Built to current 3-A specifications for sanitary standards

APPLICATIONS

• Dairy and milk processing
• Brewing and beverage production
• Food processing
• Chemical and pharmaceutical manufacturing
• HVAC systems
• Industrial process heating and cooling

PERFORMANCE

• Variable plate capacity with a fixed footprint (AR51-D model)
• High-capacity frame option (AR51-H model)
• Heavy-wall ports to resist cracks and leaks
• Compatible with two plate styles for optimized heat transfer
