Max-Air Positioners

PRODUCT DESCRIPTION

Max-Air Technology's positioner series offers comprehensive valve control solutions designed for exceptional accuracy and reliability across diverse industrial applications. These versatile units provide precise positioning control for ball, butterfly, and globe valves, enabling specific process parameters such as temperature, flow rates, and pressure to be maintained with maximum efficiency.

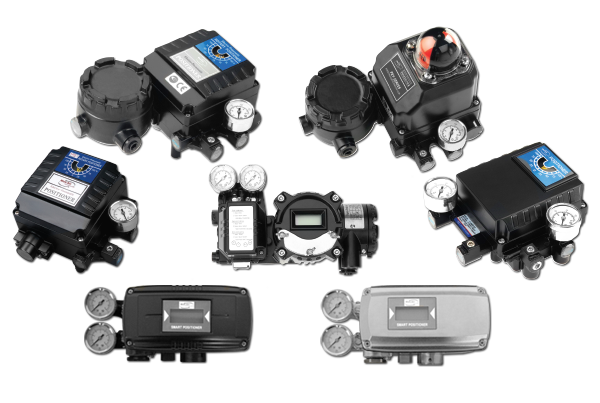

Available in pneumatic, electro-pneumatic, intrinsically safe, explosion-proof, and smart configurations, these positioners feature advanced capabilities including HART protocol compatibility, partial stroke testing, and comprehensive diagnostic functions. With options for both safe and hazardous area installations, they deliver superior performance while maintaining ease of setup and operation.

FEATURES AND BENEFITS

• Fast response time and excellent stability
• Simple zero and span adjustment with auto-calibration
• IP66 weatherproof enclosure protection
• Integrated position transmitter and limit switch options
• HART 7 protocol compatibility for advanced diagnostics
• Partial stroke testing capability
• Local positioner bypass option
• High and low temperature solutions available
• Double acting and single acting functionality in a single model
• Custom mounting kits for any application

APPLICATIONS

• Chemical and petrochemical processing
• Oil and gas facilities
• Water treatment systems
• Power generation plants
• Food and beverage processing
• Pharmaceutical manufacturing
• Pulp and paper mills
• General industrial processes

PERFORMANCE

• Supply Pressure: 20-100 PSI (1.4-7 BarG)
• Linearity: ±0.5% F.S.
• Hysteresis: ±0.5% F.S.
• Sensitivity: ±0.2% F.S.
• Operating Temperature: -40°F to 158°F (-40°C to 70°C)
• Air Consumption: 0.14m³/hr (standard conditions)
• Flow Capacity: 6m³/hr (standard conditions)
