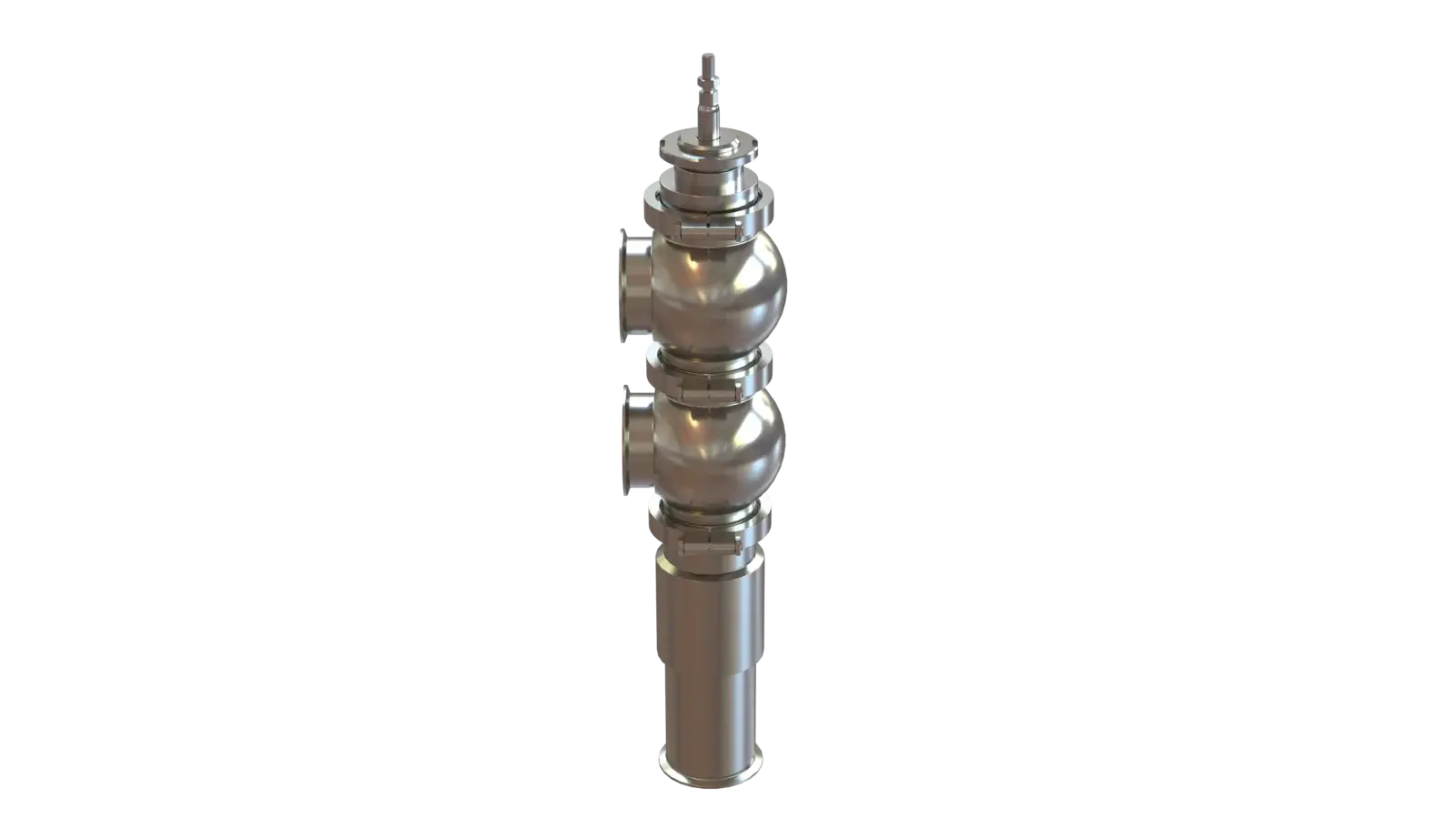

Hydron™ Sanitary Hydroheater

PRODUCT DESCRIPTION

The Hydron™ is the most precise, accurate, and versatile Sanitary Hydroheater available. Its modular 3-A certified design delivers optimal process flexibility and stability in an easy-to-use and maintain package.

FEATURES AND BENEFITS

• Operating stability across a full range of process conditions
• Precise temperature control within +/- 1 degree
• Scalable design to allow for future adjustments
• Self-cleaning design eliminates scale build-up and product fouling
• Automatic, Manual, and Fixed combining tube designs to help optimize process conditions
• Reduce energy costs through operational efficiency
• Adjustable controls for mixing and/or shear
• Certified sanitary design
• Precise temperature control
• Scalable design and components

APPLICATIONS

• Starch cooking (gravy, cream corn)
• Clean-in-Place
• Pasteurization
• Tomato paste heating
• Baby food cooking
• Applesauce heating
• In-line cooking
• Soup-base cooking
• Pharmaceutical
• Cosmetics
• Adjunct mashes (corn, rice, unmalted barley, etc.)
• Standard brewers malt mashes (Up to 25% dry solids)
• Baby formula
• Dairy products
• Whey permeates
• Ingredient water
• Inline cooking (meat slurries, soup-base)
• Product/ingredient sterilization

PERFORMANCE

• Pressure & Temperature
  • Max Pressure 195 PSIG / 13.4 Barg
  • Max Temperature 400°F / 204°C
• Electricity Usage
  • Hydron servo motor (1)
  • Less than 1 KW (2 HP)
• Connection Types
  • Tri-clamp
  • I-Line (Extended Lead Time)
  • ASME BPE Tri-Clamp
  • Other custom sanitary connections available
• Materials of Construction
  • 316L – Standard
  • AL-6XN – Corrosive applications
• Actuation
  • Pneumatic steam control actuator with fail close
  • Electric drive for shear/stability control
  • Manual CTA option included and always upgradeable

INDUSTRIES

• Beverage
• Dairy (Separation & Pasteurization)
• Food
• Pharmaceuticals (Personal Care & Bio Tech)
