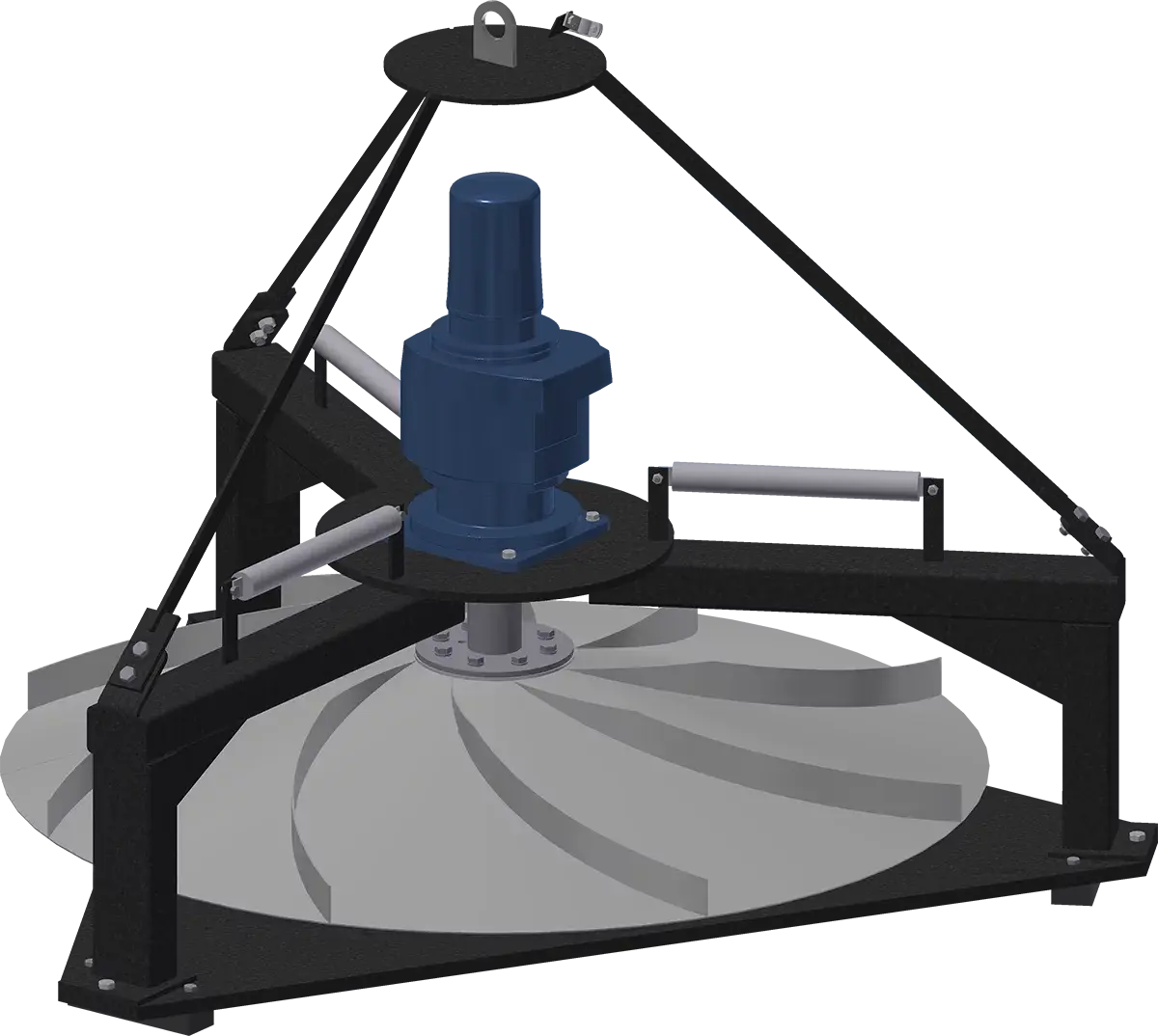

Aquaturbo Mix-GS Hyperbold Bottom Mixer

PRODUCT DESCRIPTION

The MIX GS hyperboloid bottom mixer is engineered to provide exceptional mixing performance for both low and high solids concentration solutions. This robust and efficient mixer features an intensive, low-energy, 360-degree mixing pattern that ensures thorough mixing throughout the basin or tank.

The MIX GS mixer is equipped with a totally non-clogging impeller, making it ideal for activated-sludge processes, denitrification, and SBR applications. Its robust design and minimal noise output contribute to low maintenance requirements, making it a reliable choice for a wide range of mixing applications.

FEATURES AND BENEFITS

• Intensive, low-energy, 360-degree mixing pattern for thorough mixing
• Totally non-clogging impeller design, suitable for various applications
• High-efficiency mixing of basins and tanks, including deep tanks and high MLSS
• Robust design and minimal noise output for low maintenance requirements
• Available as submerged drive or bridge-mounted drive with extended shaft options
• Vertical operation only, with fixed or variable water levels

APPLICATIONS

• Activated-sludge processes
• Denitrification
• Sequencing Batch Reactors (SBR)
• Deep tanks and high Mixed Liquor Suspended Solids (MLSS) applications

PERFORMANCE

• Motor power range: 1.1 kW to 30 kW
• Impeller diameter range: 1500 mm to 3000 mm
• RPM range: 10 to 42 rpm
• Maximum airflow range: 350 m3/h to 3250 m3/h
