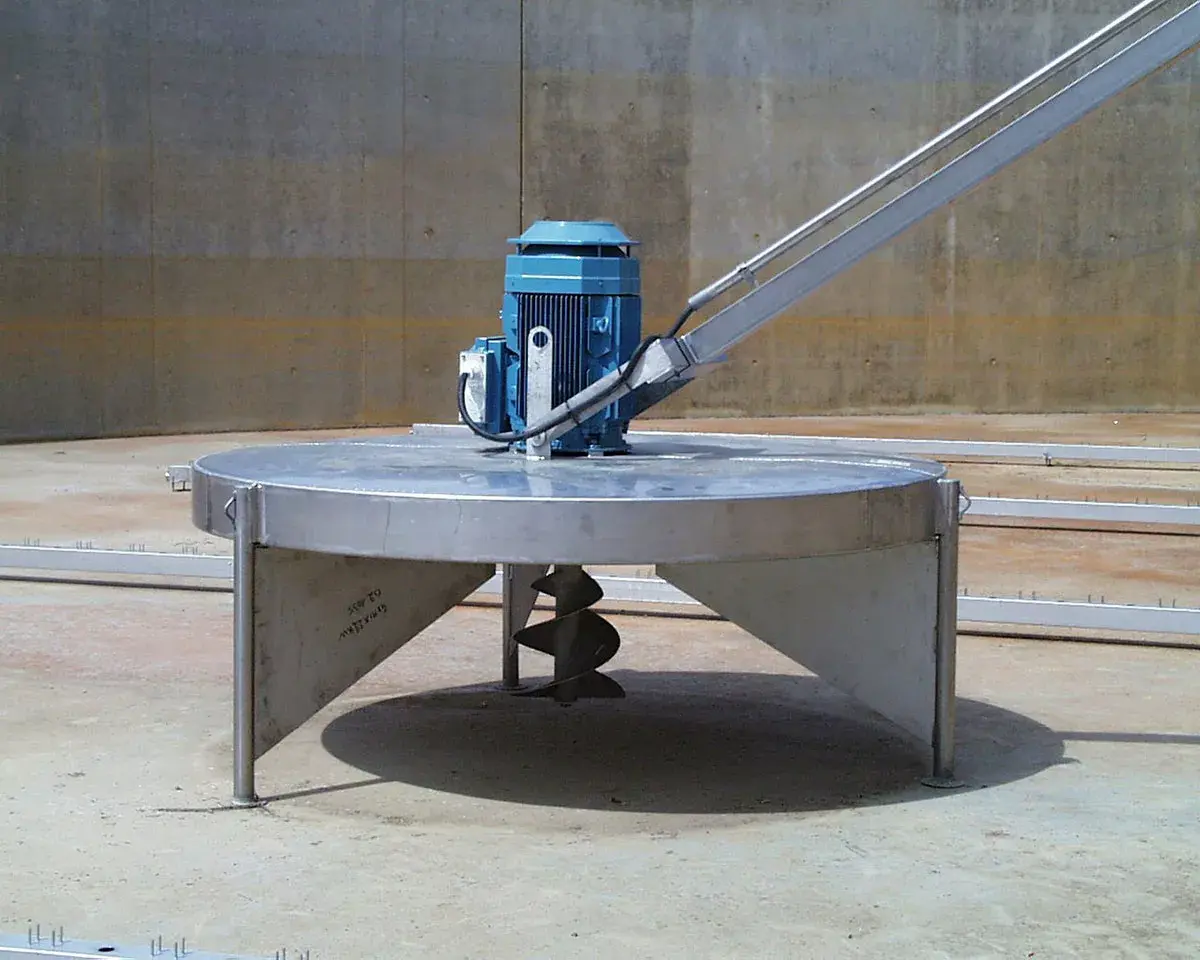

Aquaturbo Mix-As Floating Downdraft Mixer

PRODUCT DESCRIPTION

The MIX AS is a versatile floating downdraft mixer designed for efficient mixing in a wide range of tank configurations and applications. Featuring an open, two-bladed helical impeller, this mixer provides an intensive radial, sub-surface mixing pattern while minimizing surface disturbance and delivering extremely low power-to-volume performance.

Adaptable to most process requirements, the MIX AS is simple, robust, and reliable. Its non-clogging impeller prevents shearing action, and the mixer is easy to install and remove. With virtually zero surface turbulence and no aerosol generation, the MIX AS ensures no oxygen transfer during operation.

FEATURES AND BENEFITS

• Turbulent 3D radial mixing pattern for efficient mixing
• 1.5 – 55kW motor range with 4 + 6-pole speeds and direct drive
• AISI 304/316 or other stainless steel construction for durability
• General-purpose mixer adaptable to various tank configurations and applications
• Simple, robust, and reliable design for long-lasting performance
• A non-clogging impeller prevents shearing action
• Virtually zero surface turbulence and no aerosol generation
• No oxygen transfer during the operation
• Easy to install and remove for maintenance

APPLICATIONS

• Suitable for a wide range of industrial mixing applications
• Adaptable to various tank configurations and process requirements
• Ideal for applications requiring efficient mixing with minimal surface disturbance

PERFORMANCE

• Motor power range: 1.5 – 55kW
• Available in 1500 rpm (Series 24) and 1000 rpm (Series 16) models
• Float diameters ranging from 1000 mm to 3000 mm
• Draught range: 525 mm to 1021 mm
• Total height range: 966 mm to 2119 mm
• Mass range: 84 kg to 1156 kg
