Hydro-Dyne Sand Shark Grit Removal Systems

PRODUCT DESCRIPTION

Sand Shark Grit Removal Systems are designed to provide efficient and economical solutions for removing grit particles from wastewater flows. These systems are well-suited for handling variable flow rates, with standard grit trap chambers capable of processing up to 70 MGD (3,000 L/s) per unit. The Sand Shark equipment family includes the Sand Shark Grit Trap, Sand Shark Grit Classifier & Hydro-Cyclone, and Grit Pump options.

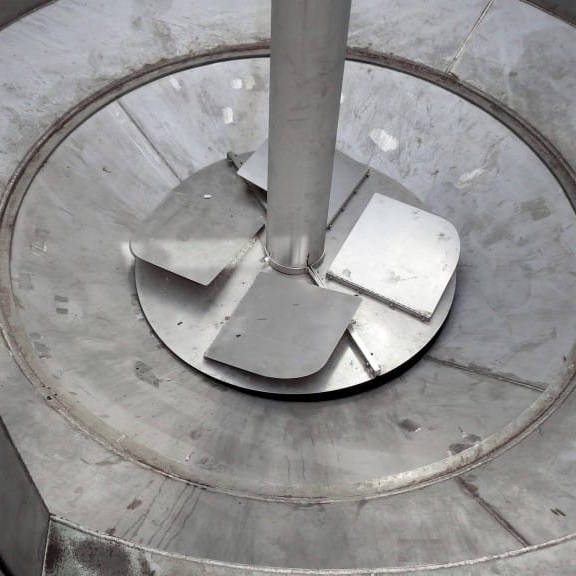

The Sand Shark Grit Trap utilizes a vortex-style system with a rotating impeller to maximize grit capture and eject light organic solids from the chamber. The Sand Shark Grit Classifier features a shafted screw flight to elevate, dewater, and dispose of grit, while the Hydro-Cyclone effectively separates grit particles without any moving parts. Various grit pump options are available to suit the specific configuration of each application.

FEATURES AND BENEFITS

• Highly efficient removal of grit particles at variable flow rates
• Standard grit trap chambers handle flows up to 70 MGD (3,000 L/s)
• Low energy costs and minimal maintenance requirements
• Durable and rugged all-stainless steel construction (carbon steel optional)
• Low headloss (less than 6.5mm)
• The vortex-style system allows continuous operation under variable flows
• Rotating impeller maximizes grit capture in the storage hopper
• Grit Classifier effectively dewaters and disposes of grit
• Hydro-Cyclone has no moving parts and is designed explicitly for de-gritting wastewater

APPLICATIONS

• Municipal wastewater treatment plants
• Industrial wastewater treatment facilities
• Combined sewer overflow (CSO) treatment
• Stormwater management

PERFORMANCE

• Grit trap chambers handle flows up to 70 MGD (3,000 L/s) per unit
• Sized to trap 200-micron grit particles in the grit trap
• Hydro-Cyclone and Grit Classifier designed to trap and process 100-micron grit particles
