Blacoh Industries SurgeWave™ Defender

PRODUCT DESCRIPTION

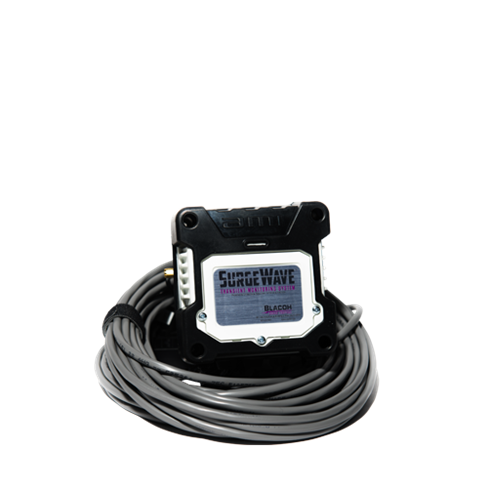

The Blacoh SurgeWave™ Defender is a patented transient pressure monitoring system that solves the need for pipeline operators to detect and record dangerous pressure events. This unique system employs dynamic pressure transducers and digital technology to continuously monitor pipelines for pressure surges, spikes, and water hammers.

When a transient event is detected, the SurgeWave™ Defender activates a high-speed data recorder to capture the event at 100 samples per second. This true-to-life sampling provides maintenance personnel with the most accurate information possible to diagnose and mitigate potential damage to the pipeline system. All data is securely stored on remote cloud servers for easy access anytime, anywhere via the Blacoh Surge website or mobile app.

FEATURES AND BENEFITS

• Automatically detects and records transient pressure events like surges, spikes, and water hammer
• High-speed recording at 100 samples per second for true-to-life data capture
• 2 inputs with hardwired pressure transducer cables
• Cellular communication to web/mobile app for remote monitoring
• Cloud data storage for ease of access and enhanced collaboration
• Designed for use anywhere there is a liquid-filled pressure tap point
• Proudly made in the USA

APPLICATIONS

• Pumping systems
• Pipelines near check valves, control valves, and pressure relief valves
• Long pipe runs susceptible to water hammer
• Municipal water and wastewater lines
• Industrial process piping
• Oil and gas pipelines
• Any fluid system needing transient pressure monitoring

PERFORMANCE

• Pressure transducer range: 0-5000 psi
• Sampling rate: 1/sec for steady state, 100/sec for transient events
• Power requirement: 500 mA @ 12 VDC
• Cellular service area required for remote communication
