AER SB Aquaturbo Self-aspirating submersible aerator

PRODUCT DESCRIPTION

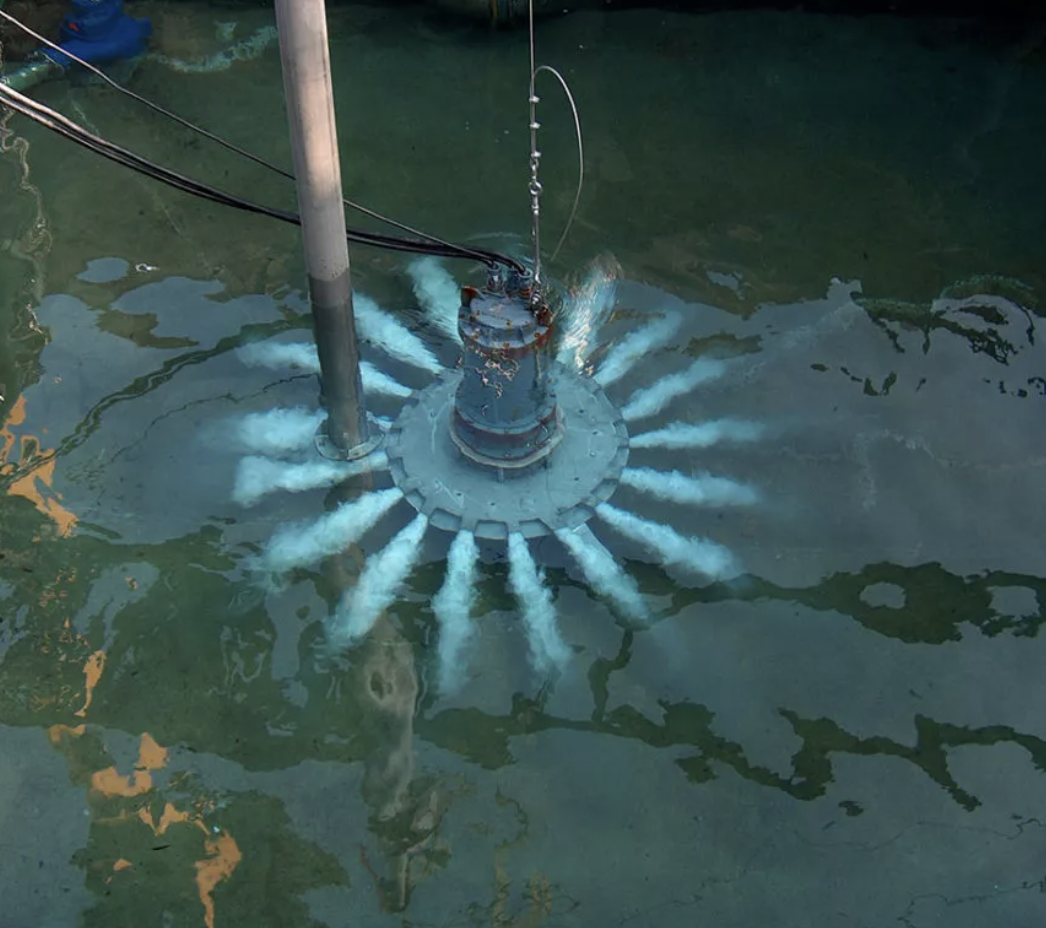

The AER SB is a versatile and efficient submersible aerator designed for deep tanks and existing pocket activated sludge processes with moderate to high sludge concentrations. This floor-mounted aerator provides intensive mixing action, making it an ideal solution for re-suspending settled sludge.

The AER SB is self-aspirating and offers low-energy, high-volume mixing, making it a cost-effective choice for wastewater treatment facilities. Its simple installation and removal process allows for easy maintenance without the need to drain the tank or stop the treatment process.

FEATURES AND BENEFITS

• Self-aspirating design for efficient aeration
• Intensive low-energy to volume mixing
• Ideal for deep tanks with high MLSS
• Suitable for existing activated sludge and aerobic digestion processes
• Simple installation and removal without draining the tank or stopping the process
• Low noise operation
• Available with or without air distribution channels
• Optional hardened impeller and inlets for heavy-duty applications

APPLICATIONS

• Activated sludge processes
• Aerobic digestion processes
• Deep tanks with high MLSS
• Re-suspending settled sludge

PERFORMANCE

• 1.1 - 110kW, 4-Pole Speed, Direct Drive Motors
• Standard or Extended length channel options
• Independent Air Intake tubes
• AISI 304/316 or special SS construction
